3M ICE190-S Single Cartridge Ice Machine Water Filtration System - 0.2 Micron Rating and 5 GPM

Designed to provide high quality water for commercial ice machines the ICE190-S from 3M is a single cartridge water filtration system for standard water that effectively reduces cyst, bacteria, and sediment particles as well as chlorine taste and odor. A built-in scale inhibitor in this water filtration system reduces lime scale build-up and the effects of chlorine corrosion for up to 54,000 gallons (204,412 liters) at flow rates up to 5 gallons per minute (18.9 liters per minute). The 1/2" FNPT horizontal inlet and outlet ports on this water filtration system provide direct or easily adaptable connections to plumbing lines.

The ICE190-S water filtration system works with select ice makers from Manitowoc, Scotsman, Hoshizaki and Ice-O-Matic for low flow cubers to 1,450 lb (658 kg), high flow cubers to 1,000 lb (454 kg) and flakers to 2,400 lb (1,089 kg). The water filtration system has a 0.2 nominal micron rating and an NSF Performance Data Sheet (PDS) is included.

Cartridges in this water filtration system use Integrated Membrane Pre-Activated Carbon Technology (IMPACT) dual-zone media that combines a membrane in series with premium activated carbon. The cartridge design on this water filtration system is a Sanitary Quick Change (SQC) type that uses a simple 1/4 turn and minimizes the possibility of leakage and contamination during cartridge change-outs.

3M ICE190-S Features

• Application: Standard water

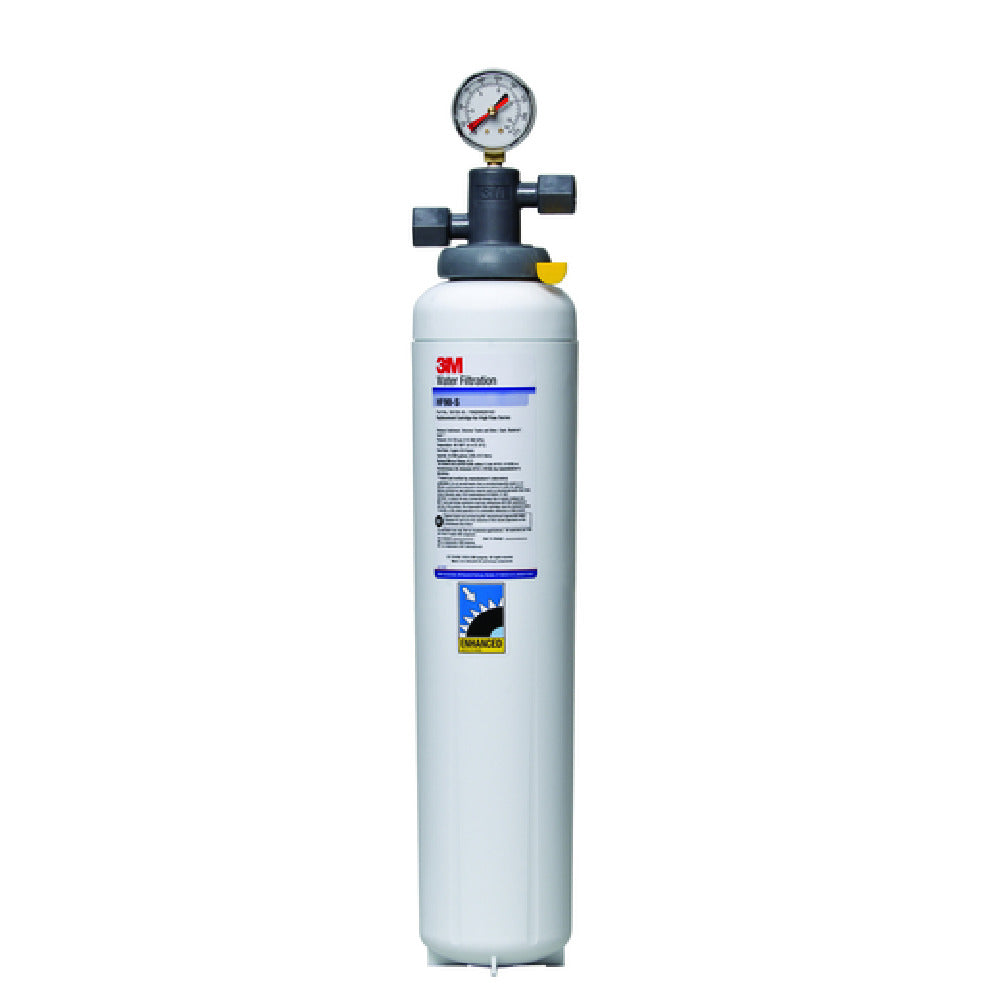

• System includes head assembly with pressure gauge, inlet water shut-off valve assembly, mounting bracket, and a single cartridge filter
• Integrated Membrane Pre-Activated Carbon Technology (IMPACT) dual-zone media
• Reduces cyst, bacteria and sediment particles as well as chlorine taste and odor
• Built-in scale inhibitor
• Capacity: 54,000 gallons (204,412 liters)
• Flow rate: 5 gallons per minute (18.9 liters per minute)
• Nominal micron rating: 0.2
• Maximum pressure: 125 psi (862 kPa) at 100 degrees F (37.8 degrees C)
• Designed for low flow cubers to 1,450 lb (658 kg), high flow cubers to 1,000 lb (454 kg) and flakers to 2,400 lb (1,089 kg)
• 1/2" FNPT horizontal inlet and outlet ports
• Replacement cartridge: HF90-S (3M part number: 56135-05)
• Case quantity: 1

3M ICE190-S Benefits

• Works with select ice makers from Manitowoc, Scotsman, Hoshizaki and Ice-O-Matic
• NSF Certified to Standard 53 for cyst reduction
• Reduces up to 99.99% of common water-borne heterotrophic bacteria
• NSF Performance Data Sheet (PDS) included
• NSF listed

Overall Dimensions:
Height: 23-5/8"
Width: 8"
