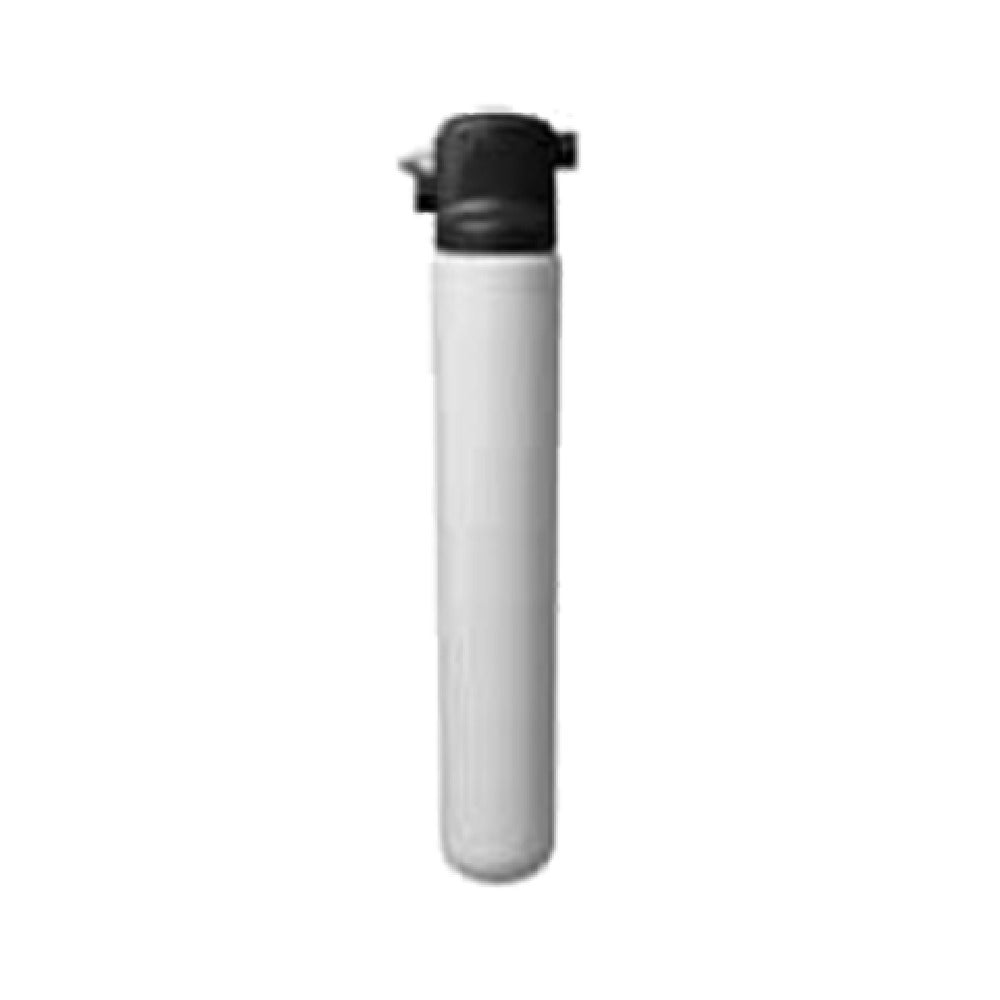

3M SGP124BN-T Single Cartridge Espresso Machine Water Filtration System - .5 GPM
Exceptional espresso starts with high quality water. The SGP124BN-T is a single-cartridge water filtration system from 3M that is specifically designed for hard water applications to reduce hardness, alkalinity and TDS (total dissolved solids) as well as chlorine taste and odor to improve the appearance, consistency, and taste of your espresso and espresso based drinks. Hard scale formation of calcium and magnesium on heating coils is also reduced by this water filtration system with a high capacity weak acid ion-exchange resin.
These water filtration systems use a patented valve-in-head design that makes cartridge change-outs simple by shutting off and venting water simultaneously, with no need to stop the upstream feed water. The cartridge design of this water filtration system is a Sanitary Quick Change (SQC) type that minimizes the possibility of leakage and contamination during cartridge change-outs with a simple 1/4 turn. The 3/8" FNPT horizontal inlet and outlet ports on this water filtration system provide direct or easily adaptable connections to plumbing lines.
The SGP124BN-T water filtration system has a capacity of 423 gallons at 10.5 grains per gallon (1,601 liters at 180 ppm) at a flow rate of 0.5 gallons per minute (1.9 liters per minute).
3M SGP124BN-T Features
- Application: Hard water
- System includes: head assembly with integral mounting bracket and a single cartridge filter
- Valve-in-head design
- Carbon block filtration medium and ion exchange media
- Sanitary Quick Change (SQC) cartridge design
- Automatic internal 1/4 turn shut-off valve
- Port for optional downstream pressure gauge
- Capacity: 423 gallons at 10.5 grains per gallon (1,601 liters at 180 ppm)
- Flow rate: 0.5 gallons per minute (1.9 liters per minute)
- Maximum operating pressure: 125 psi (862 kPa), operating temperature of 100 degrees F (37.8 degrees C)
- 3/8" FNPT horizontal inlet and outlet ports
- Filter cartridges: O-ring seal type
- Replacement cartridge: P-124BN (3M part number 56109-01)
- Case quantity: 4
3M SGP124BN-T Benefits
- Improves the taste of your espresso by reducing hardness, alkalinity, and TDS (total dissolved solids) as well as chlorine taste and odor
- All materials are FDA CFR-21 and/or NSF compliant
Overall Dimensions:
Height: 19-3/4"
Width: 4"
- 423 Gallons, 0.5 GPM
- 719 Gallons, 1.0 GPM
- 1,200 Gallons, 1.0 GPM
