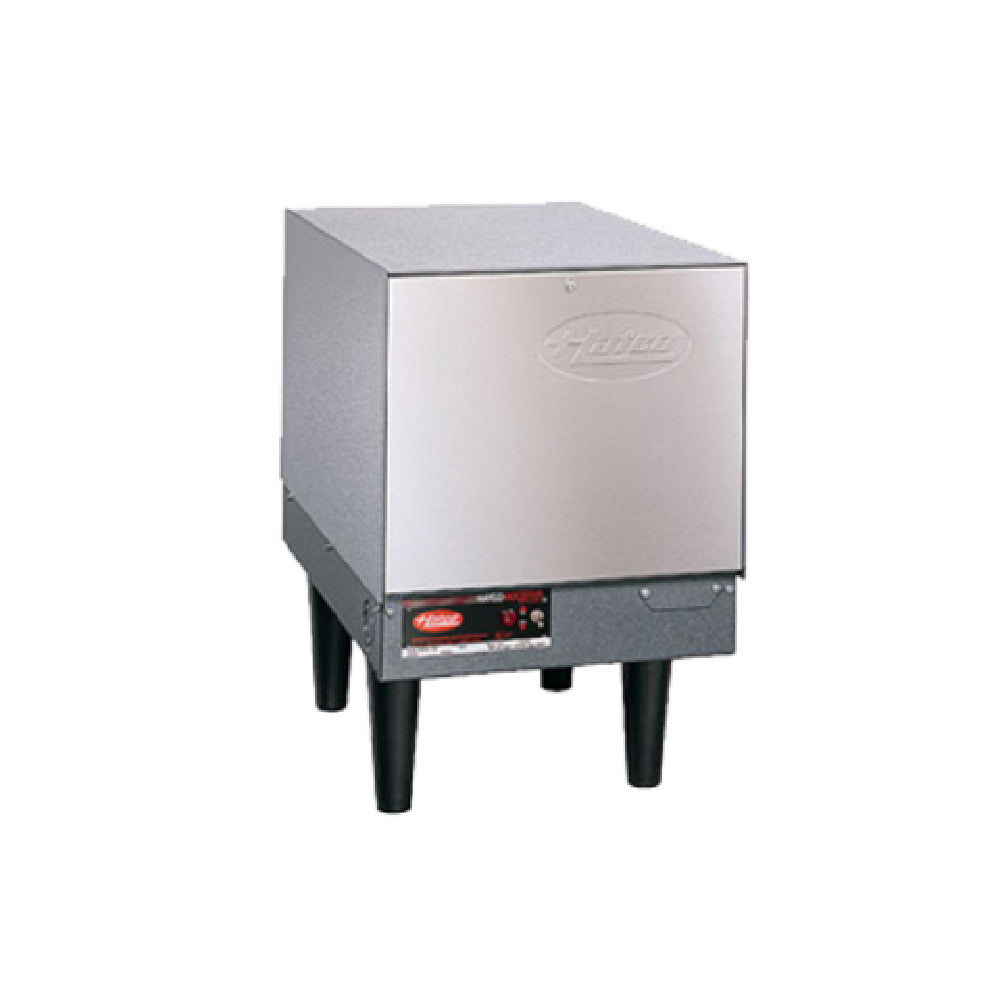

Hatco C-15-208-3 Compact 15.0 kW Insulated Booster Water Heater With 6 Gallon Capacity Castone Lined Tank And Stainless Steel Front And Black Base With 6 Inch Legs 208 Volt 3 Phase

Item
#244243
Universal Item
#
MFG
#C-15-208-3
Description

The Hatco C-15-208-3 Compact 15.0 kW Insulated Booster Water Heater With 6 Gallon Capacity Castone Lined Tank And Stainless Steel Front And Black Base With 6 Inch Legs 208 Volt 3 Phase provides all of the necessary supply of 180 degrees F final rinse water for your commercial dishwasher.

The model includes a temperature/pressure relief valve, a cast iron pressure reducing valve, 2 temperature/pressure gauges, a high-temperature limit control, an on/off switch, and an indicator light.

There is fiberglass insulation that minimizes heat loss and it comes equipped with a built-in Energy Cut-Off (ECO) feature that protects against water temperatures that are higher than normal. The electric heating elements are metal sheathed and operate with an ambient compensating immersion thermostat.

There is a low water cut-off (LWCO) feature on this unit that prevents burnout by cutting the power to the heating elements when the water level drops too low in the booster tank and resets automatically when the water level is safe. The Castone (cement-lined) tank has a 6-gallon storage capacity and it is designed for a 150 psi working pressure and it is hydrostatically tested at 300 psi.

This C-Series compact booster heater has a stainless steel front panel, a powder-coated silver-gray hammertone body, and a black base with 6" plastic non-adjustable legs. This compact booster water heater is made in the USA, NSF listed, UL listed for the United States and Canada for safety.

The C-12-208-1 is an electric unit that runs at 208 Volts, 60 Hertz, 3-phase, and 41.7 Amps for 15.0 kW and it requires hardwiring. It has a 3/4" NPT pipe and fittings for inlet and outlet.

Hatco C-15-208-3 Features

  • 15.0 kW booster water heater
  • Castone (cement-lined) tank
  • Booster heater type: Compact
  • 6-gallon storage capacity
  • Stainless steel front panel
  • Powder-coated silver-gray hammertone body
  • Black base
  • 6" plastic non-adjustable legs
  • Metal sheathed heating elements
  • Low water cut-off (LWCO)
  • Fiberglass insulation
  • Energy Cut-Off (ECO) protection
  • 3/4" NPT pipe and fittings for inlet and outlet
  • Working pressure: 150 psi
  • Electrical specifications: 208 Volts, 60 Hertz, 3-phase and 41.7 Amps for 15.0 kW, requires hardwiring
  • Temperature/pressure relief valve
  • Cast iron pressure reducing valve
  • 2 temperature/pressure gauges
  • High-temperature limit control
  • On/Off toggle switch and indicator light
  • UL listed for the United States and Canada
  • NSF certified
  • Made in the USA

Hatco C-15-208-3 Benefits

  • Provides consistent supply of final rinse water for your commercial dishwasher
  • Low water cut-off (LWCO) feature prevents burnout when water level drops and resets automatically when level is safe
  • Durable Castone (cement-lined) tank
  • Built-in Energy Cut-Off (ECO) feature protects against higher than normal water temperatures

Overall Dimensions:
Height: 19 3/4" (Including 6" legs)
Width: 13"
Depth: 20 3/4"

View all Description

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Add to Wishlist
Free Shipping
Add this item to the cart to calculate your shipping rate
$2,741.25
Each
Net 30 or as low as $254/month
Prequalify
For Business
Shipping
Typically ships in 6 business days.
