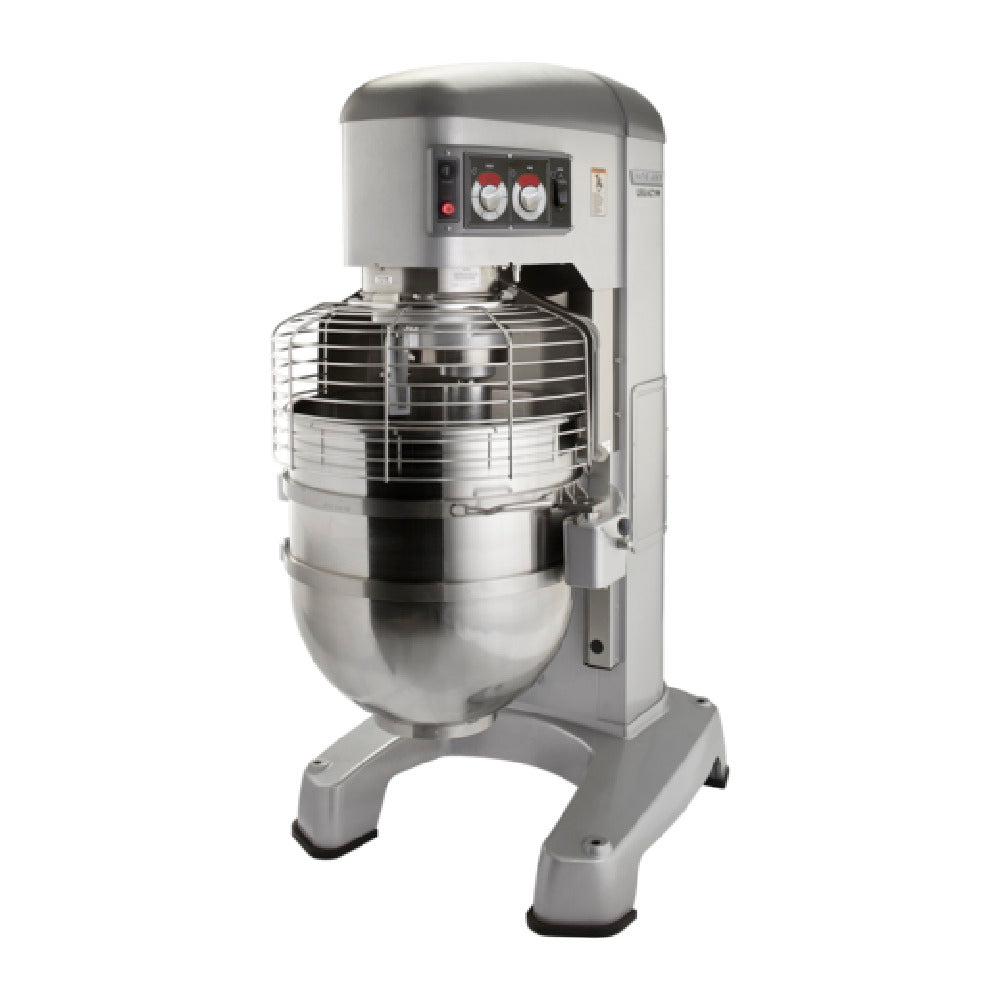

Hobart HL1400-1STD Legacy 140-Quart 4-Speed 5.0 HP All-Purpose Commercial Planetary Mixer With Stainless Steel Bowl, Beater, Dough Hook And Bowl Truck, 200-240 Volts, 3-phase

There is a Variable Frequency Drive (VFD) on this planetary mixer that uses an all-gear, direct-drive system to deliver precise mixing consistency while protecting and ensuring a long life for the motor.

The HL1400-1STD is the Legacy 140-quart all-purpose commercial planetary mixer from Hobart with a stainless steel bowl, "B" beater, "ED" dough hook, and a bowl truck. The mixer features 4-speeds plus a stir speed using a heavy-duty, high-torque 5.0 HP motor and a gear-driven transmission.

The patented soft-start Agitation Technology on this planetary mixer gives a soft transition as mixing speeds increase to reduce splashing. There are 4 mixing speeds (Low 46 RPM, Medium-Low 80 RPM, Medium-High 150 RPM, and High 265 RPM) including a stir speed (Slow 23 RPM) on this mixer.

This Legacy unit features Shift-on-the-Fly controls that allow you to pulse and jog the mixer without needing to stop to change speeds.

The planetary mixer includes a 50-minute SmartTimer that includes Automatic Time Recall that remembers the last time setting for each speed, power bowl lift, and a stainless steel bowl guard.

The Legacy HL1400-1STD planetary mixer is an electric unit that runs at 200-240 Volts, 50/60 Hertz, 3-phase, and 14.8 Amps for the 5.0 HP motor and it requires hardwiring. There is a hole at the top of the pedestal for a 3/4"-trade-size conduit. Hobart recommends that all electrical connections be made by qualified personnel who will follow all of the proper safety codes and guidelines.

This planetary mixer has a metallic gray hybrid powder coat finish and it is both UL listed and NSF listed. The unit stands firmly on neoprene footpads.

Hobart HL1400-1STD Features

• Stainless steel bowl
• "B" Beater
• "ED" Dough Hook
• Bowl truck
• Gear-driven transmission
• Color: Gray
• Capacity: 140-quart
• 4 mixing speeds (Low 46 RPM, Medium-Low 80 RPM, Medium-High 150 RPM, and High 265 RPM) including a stir speed (Slow 23 RPM)
• Power bowl lift
• Shift-on-the-Fly controls
• 50-minute SmartTimer with Automatic Time Recall
• Variable Frequency Drive (VFD) with all-gear, direct-drive system
• Finish: Metallic gray hybrid powder coat finish
• Stainless steel bowl guard
• Electrical specifications: 200-240 Volts, 50/60 Hertz, 3-phase, and 14.8 Amps for 5.0 HP
• Hardwiring required
• Neoprene footpads

Hobart HL1400-1STD Benefits

• Agitation Technology gives soft transition as mixing speeds increase to reduce splashing
• Pulse and jog without stopping to change speeds with Shift-on-the-Fly controls
• Heavy-duty, high-torque 3.0 HP motor
• NSF listed
• UL listed
• Automatic Time Recall on SmartTimer remembers the last time setting for each speed
• Precise mixing consistency with Variable Frequency Drive (VFD) that also protects the motor

Overall Dimensions:
Height: 67 5/8"
Width: 27 1/4"
Depth: 47 1/8"

Capacity: 140-quart
