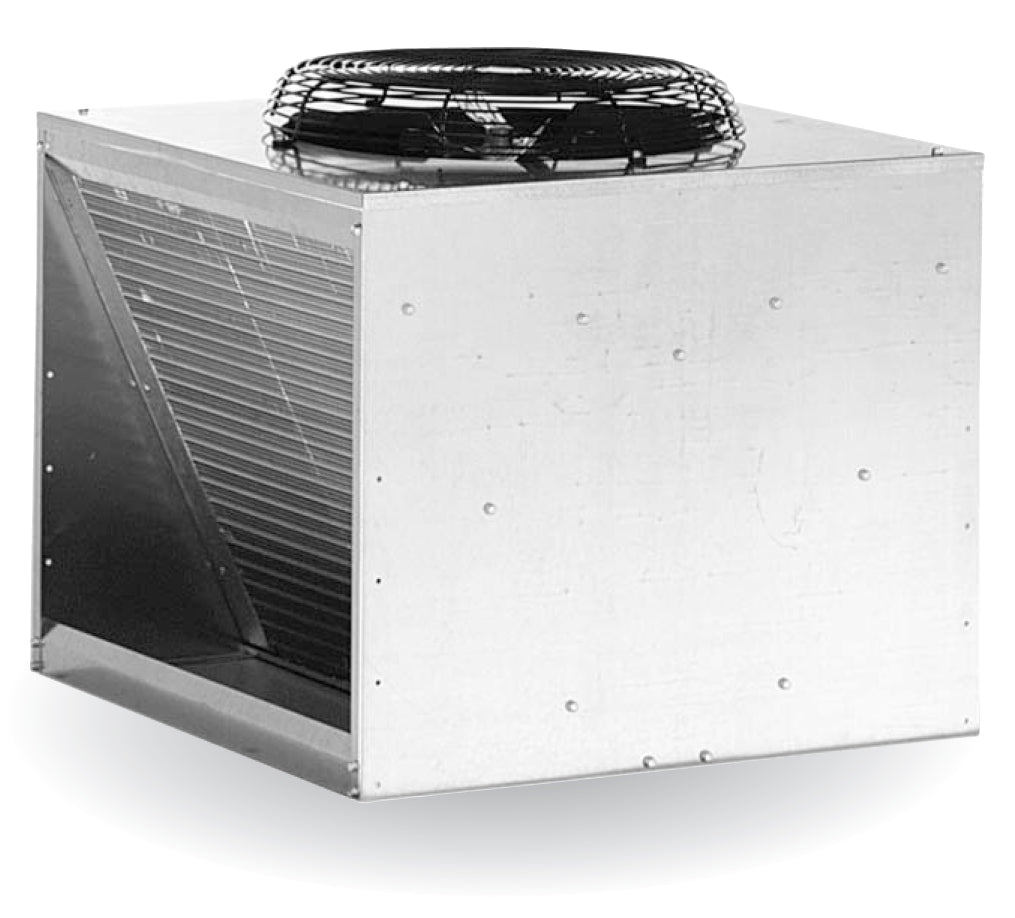

Scotsman ERC611-32 ERC Series Air Cooled Remote Condensing Unit For Prodigy Ice Machines, 208-230V

This is a remote condensing unit, made especially for C1848 and C2148 model ice machines from Scotsman. These remote condensing units feature thermally protected fan motors, PVC coated steel fan guards, direct-drive fan blades and have standard Aeroquip fittings.

The condensing unit is designed to be powered by the ice machine they are connected to and will maximize ice production by driving heat away from the ice machine. The galvanized steel finish resists corrosion and extends the life of the condensing unit. There are a variety of pre-charged, insulated, refrigerant line sets available for this remote condensing unit in 10 ft, 25 ft, 40 ft, and 75 ft lines.

The ERC611-32 runs on 208-230 Volts, 60 Hz, 1-phase, 3.8 amps and they can be used in an outdoor temperature range between -20 to 120 degrees F.

Scotsman ERC611-32 Features

• Remote condensing unit designed for Scotsman C1848 and C2148 ice machines
• Galvanized steel finish
• Thermally protected fan motors
• PVC coated steel fan guards
• Direct drive fan blades
• Aeroquip fittings
• Operates in outdoor temperature range between -20 to 120 degrees F
• Electrical specifications: 208-230 Volts, 60 Hz, 1-phase, 3.8 amps
• For use on: Scotsman C1848xR and C2148xR ice machines

Scotsman ERC611-32 Benefits

• Corrosion-resistant galvanized steel finish
• Quiet operation makes them ideal for dining and working environments
• Maximizes ice production by driving heat away from the ice machine
• Refrigerant line sets available for this remote condensing unit in 10 ft, 25 ft, 40 ft, and 75 ft lines
• ISO Certified
• UL listed
• Made in the USA

Overall Dimensions:
Height: 38.5"
Width: 29.5"
Depth: 37.75"
