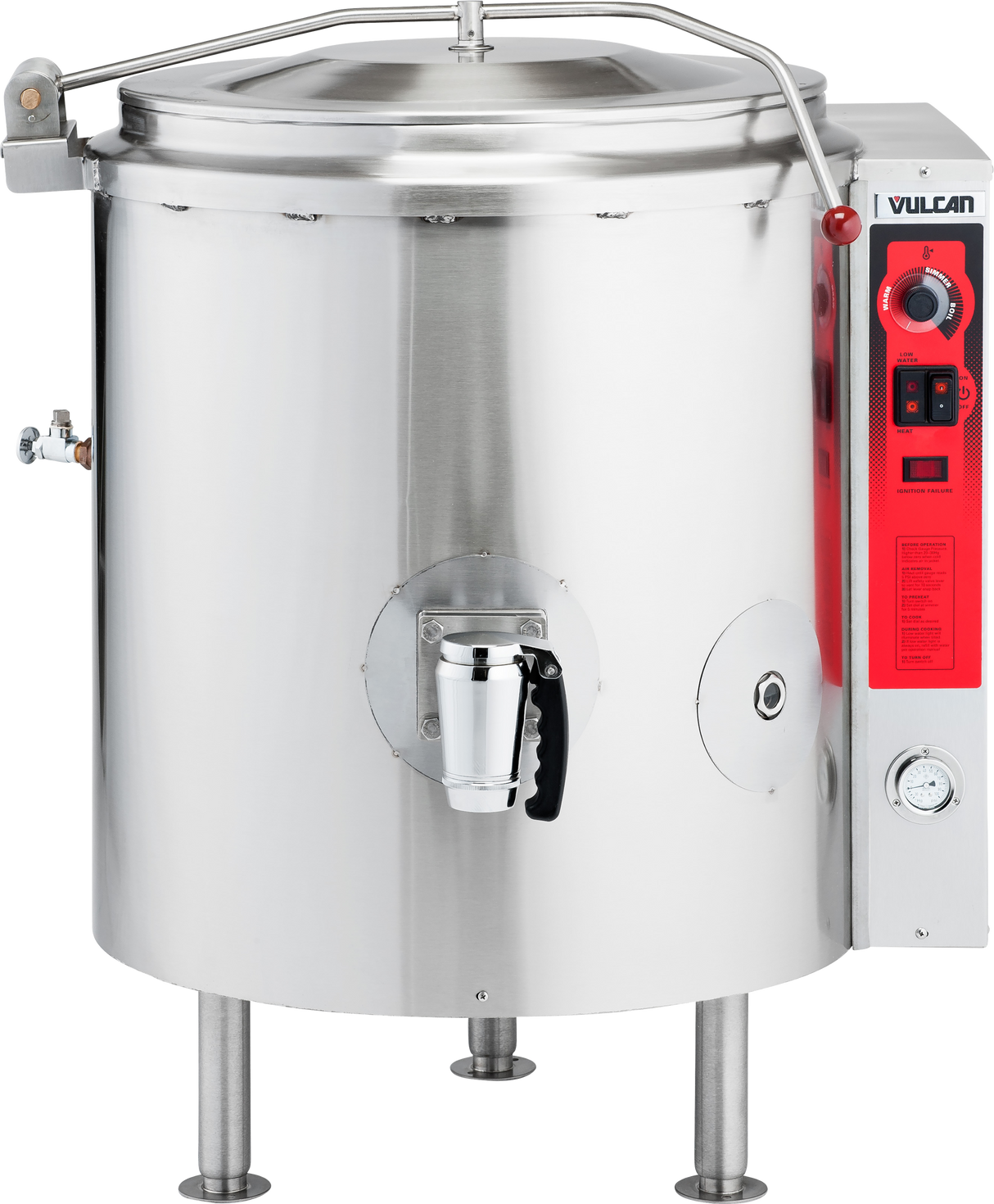

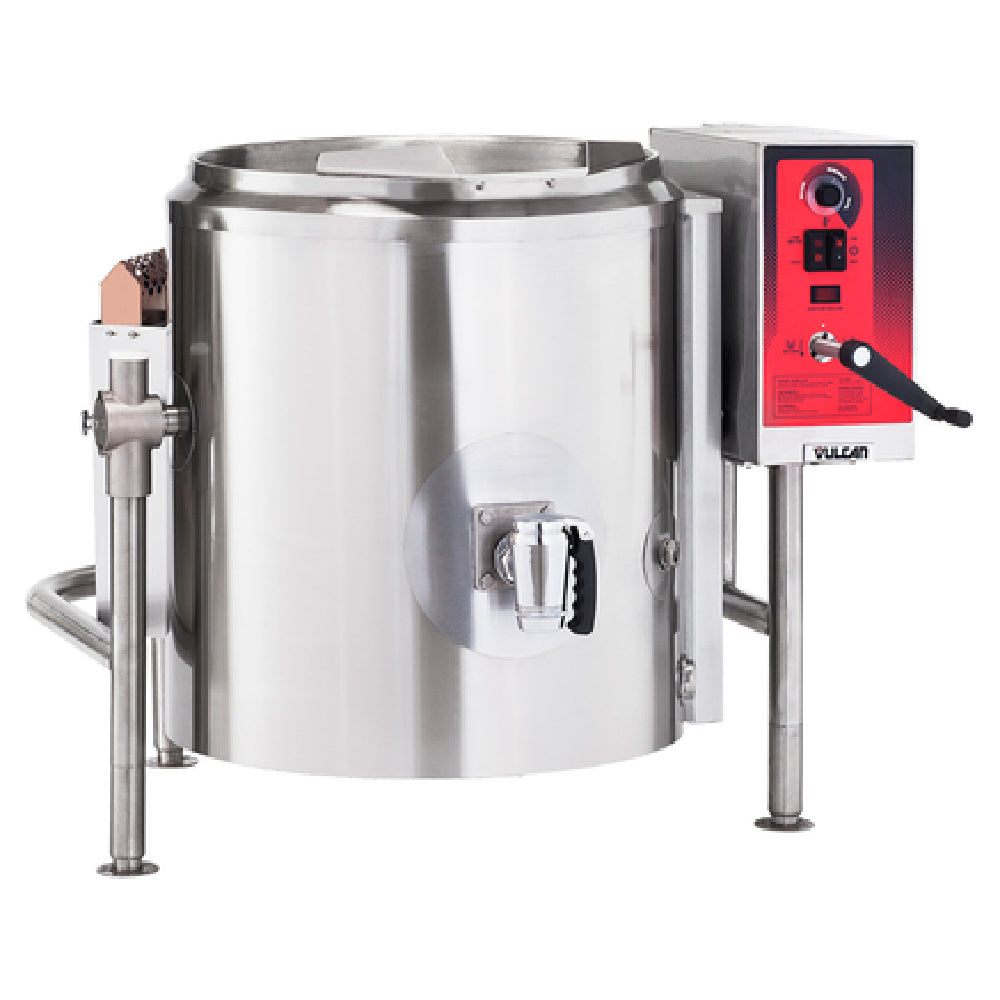

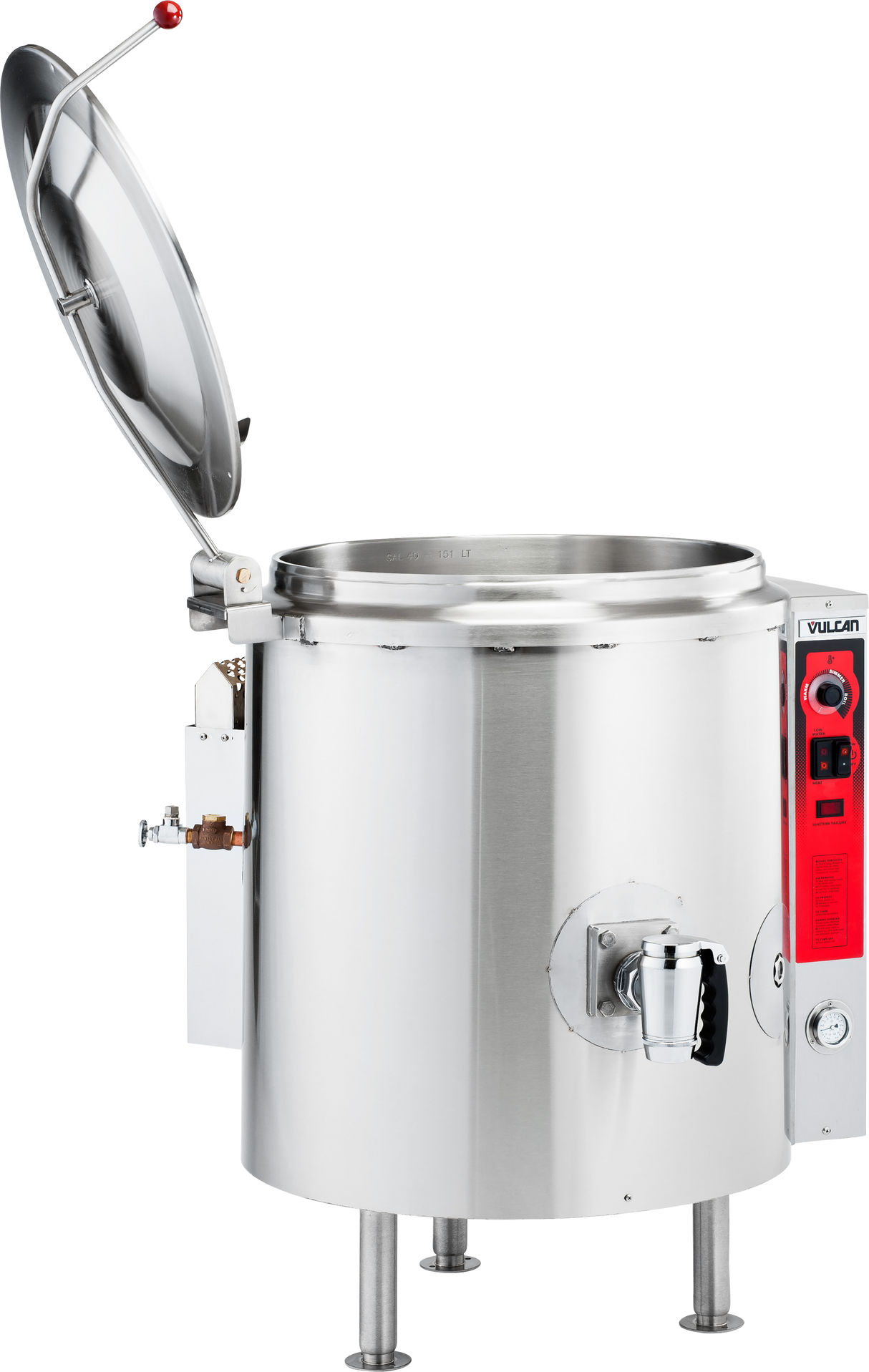

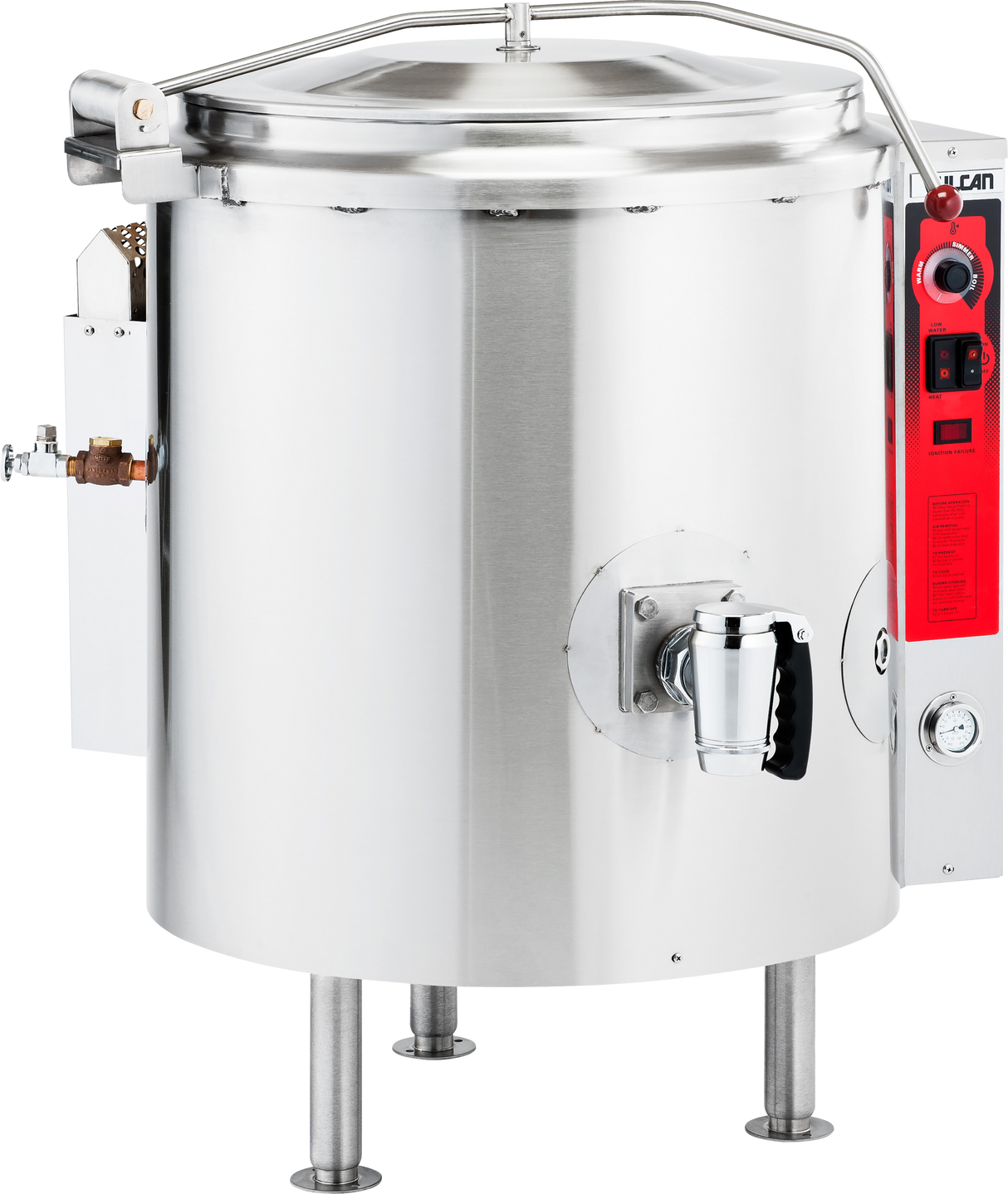

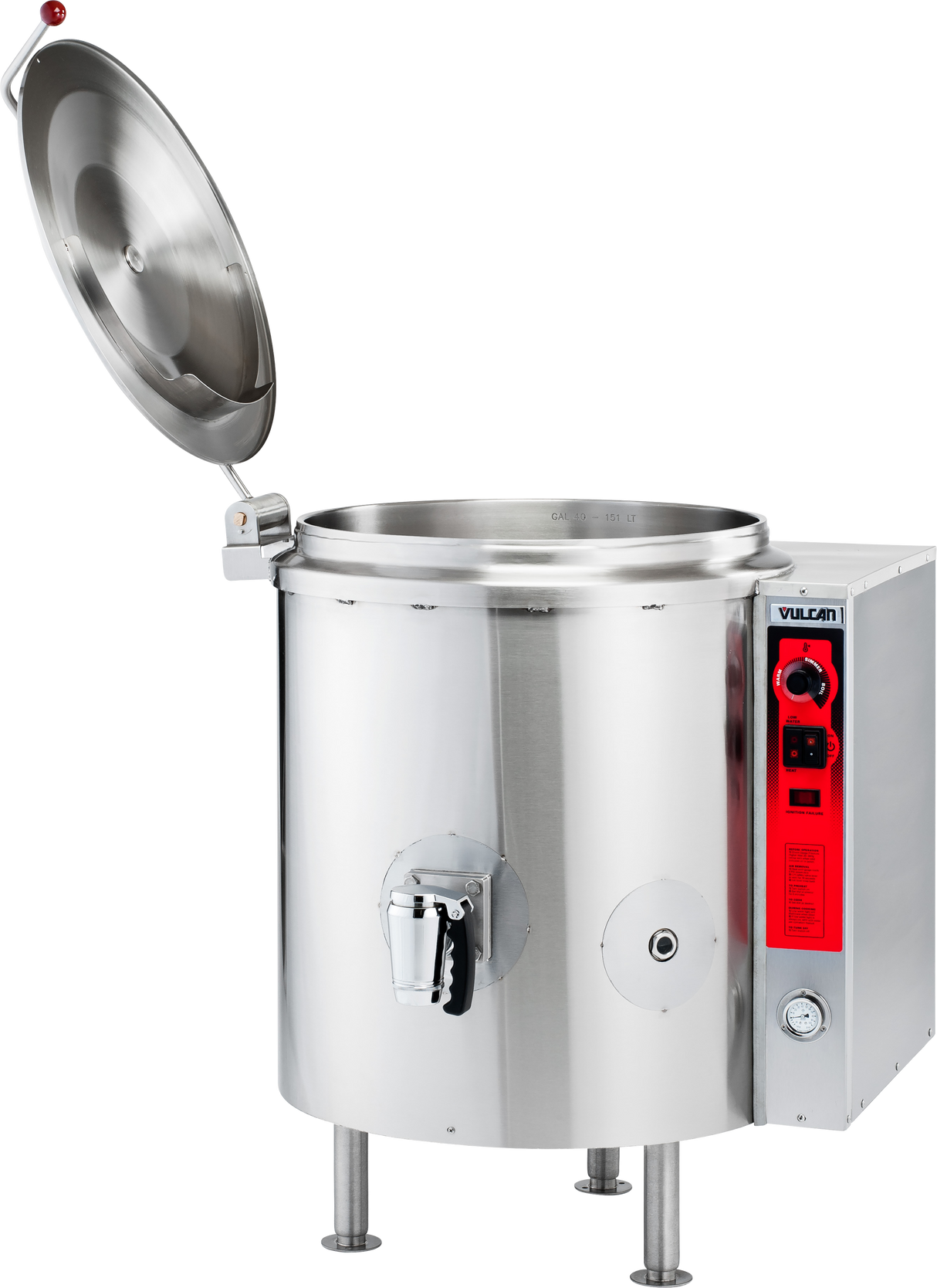

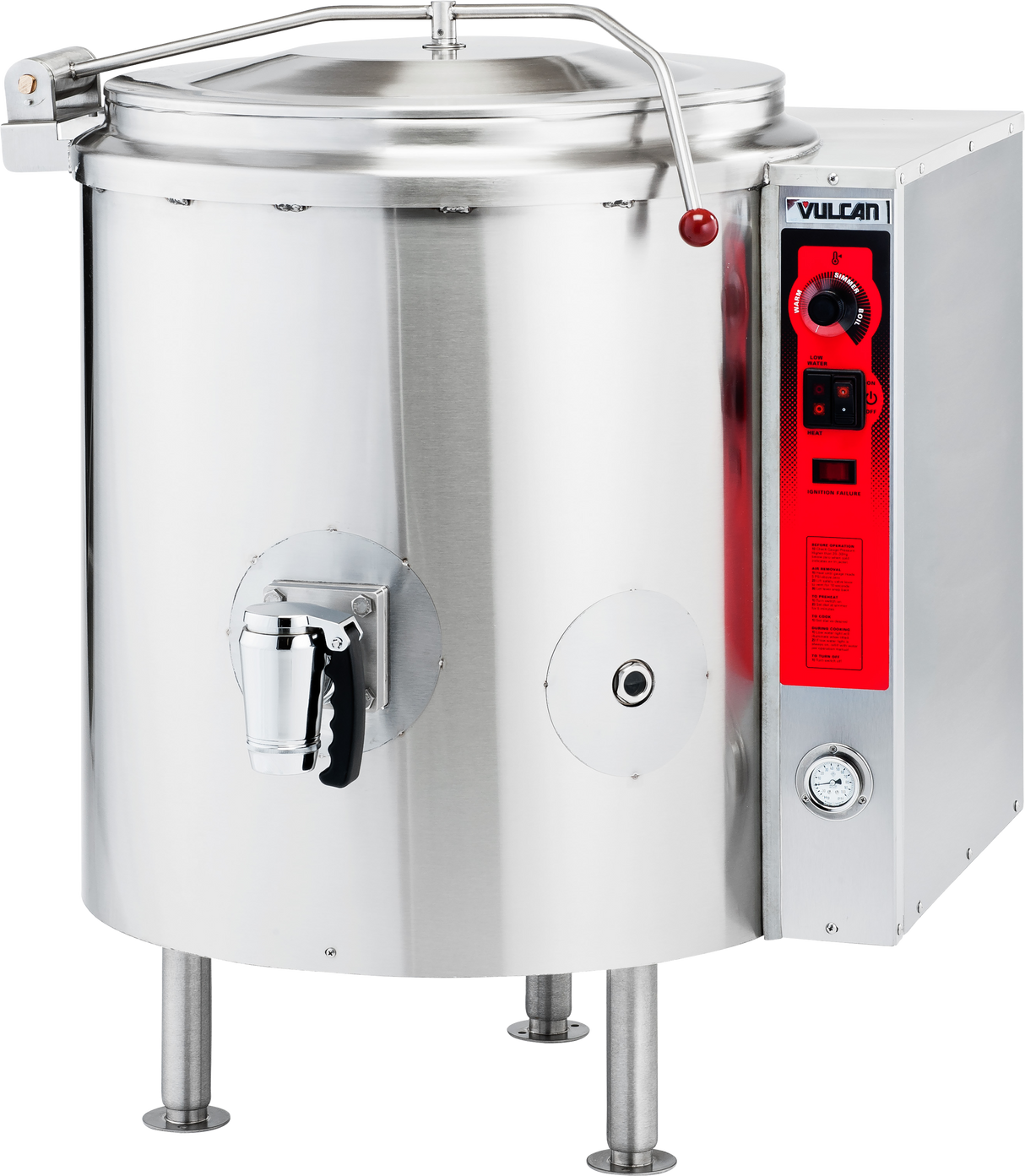

Vulcan K40GL Gas 40 Gallon Stationary 2/3 Steam Jacketed Kettle - 100,000 BTU

The K40GL is a Stationary Gas Kettle from Vulcan that runs on 100,000 BTUs. This kettle is constructed of stainless steel, including a 316 series steel liner. The liner includes an ellipsoidal bottom. The compression draw-off valve features a perforated strainer. True working capacity is 20 gallons. The model is 2/3 jacketed. There is a spring assist cover which includes a condensate ring and a drop-down lift handle. The Power Burning Heating System is designed for high efficiency. This model runs on natural gas, but is field convertible to liquid propane with Span Gas technology.

The various controls include solid state temperature control (with warm, simmer, and boil settings), a vacuum/pressure gauge, and a pressure relief valve. A light, and eventually a shut-off, will occur when water is low. The controls, as well as the faucet bracket, are in an enclosure to protect from water. The tubular legs feature flanged feet. The steam jacket contains treated and distilled water. This unit is designed for use up to 8,999 feet in elevation. It is certified to NSF Standard #4.

Vulcan K40GL Features

• Stationary Kettle
• Material: Stainless Steel
• Capacity: 40 Gallons
• Natural Gas
• Adjustable to Liquid Propane
• Draw Off Valve w/Perforated Strainer
• Faucet Bracket
• Heavy Bar Rim
• 2/3 Jacket
• 316 Series Stainless Steel Liner
• Combination Gas Valve
• Spring Assisted Hinge Cover w/Condensate Ring
• Low Water Light & Shut-Off
• Water Resistant Controls
• Flanged Feet
• Embossed Gallon/Liter Markings
• Yolk Style Mount
• 100,000 BTUs
• 110-120 Volts
• NSF
• UL Listed

Overall Dimensions:

Width: 36 11/16"

Depth: 23"

Height: 39 1/4"

Capacity: 40 gallons
